The sinister looking Black Widow was built to an Army specification issued in 1940 and eventually saw service with both the Air Corps and Marines. Designed primarily as a night fighter, much of it's equipment was the then secret Radar. The detailed plan set consists of five large sheets which clearly illustrate all structure as well as showing flap and retract installation. The design also features spoilers in outer wing panels.
| Product Name | Qty | ||
|---|---|---|---|
|
FTE-Cast Resin Dummy Engine
$33.00
|
||
|
Vacuum Formed Dummy Engines
$8.00
|
||
|
WWII American USAAF RC Pilot Figure
$69.00
|
||
|
P-61 "Lady In The Dark" Vinyl Graphics
$69.95
|
||
|

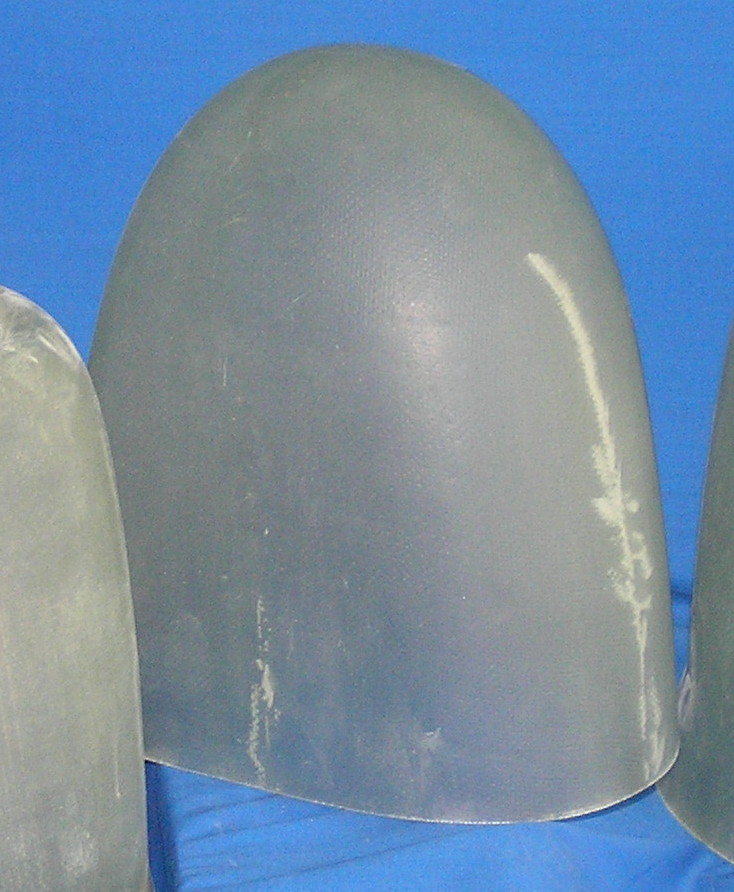

P-61 Black Widow Fiberglass Nose
$40.00
|
||
|

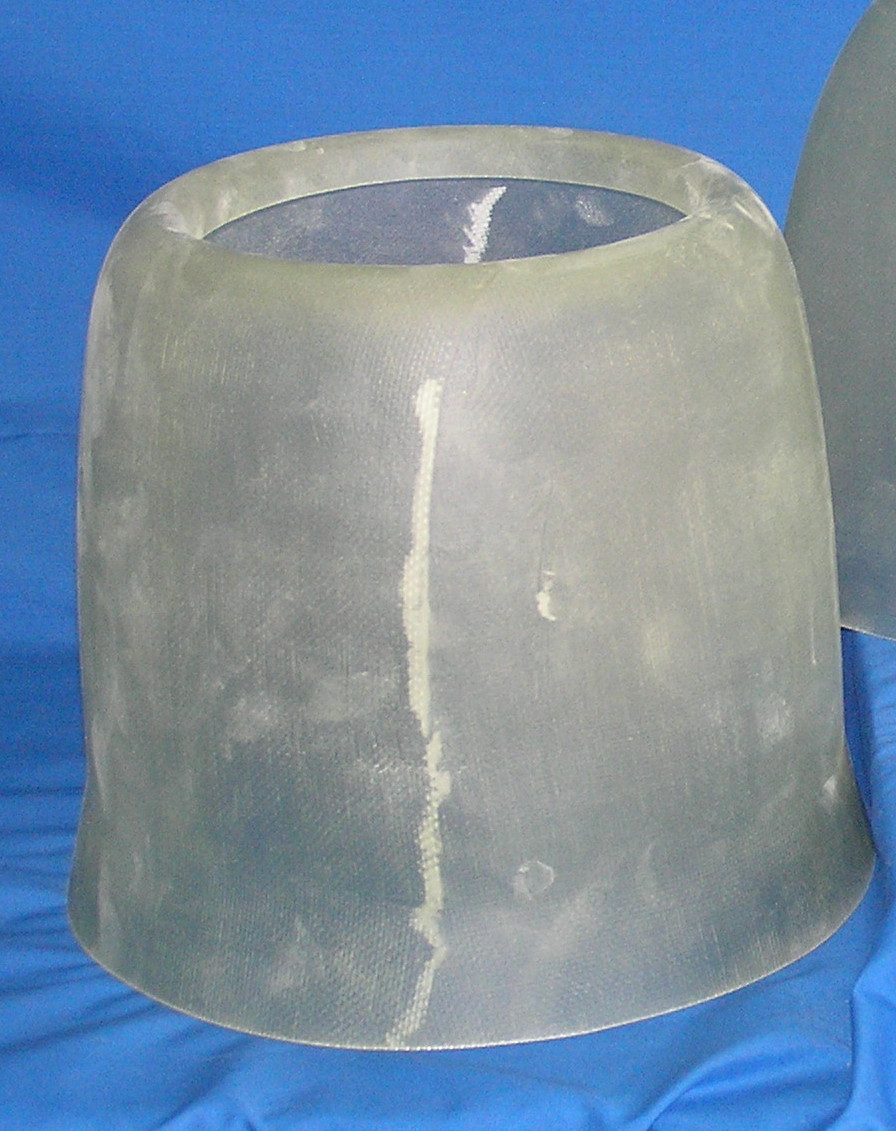

P-61 Black Widow Fiberglass Cowl
$40.00
|
||
|

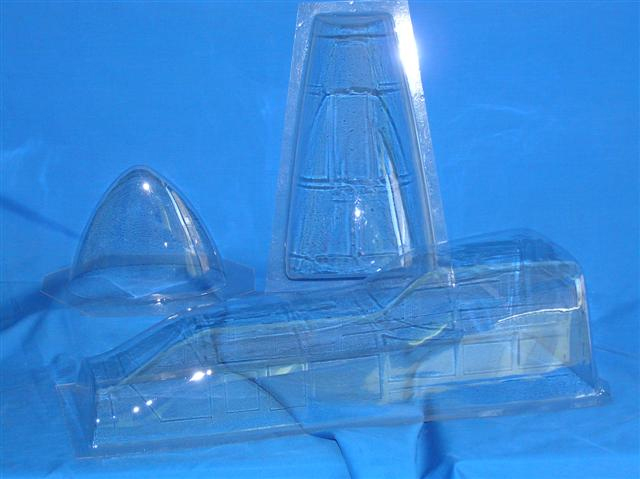

P-61 Black Widow Canopy Set
$58.00
|
||
|

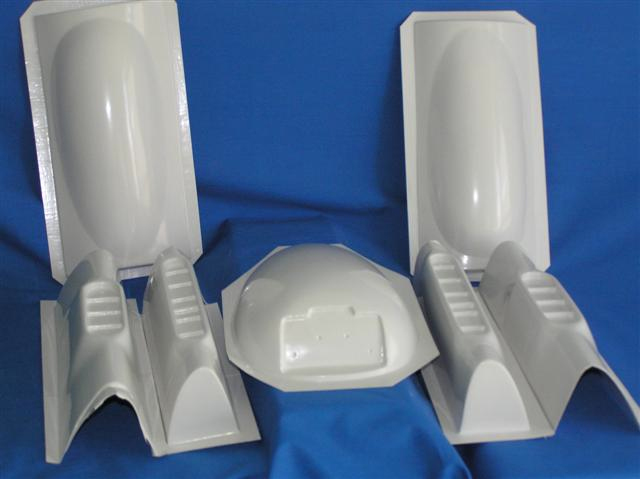

P-61 Black Widow Turret and Inlet Set
$36.00
|
||
|
Aluminum Wing Tube and Sleeve Set
$30.00
|
| Product Name | Qty | ||
|---|---|---|---|
|
Dubro Fuel Tank
$6.62
|
||
|
B & B Specialties Fuel Tank
$17.95
|
||
|
B & B Specialties Mufflers
$41.95
|
||
|
B & B Specialties Stainless Steel Flex Exhaust Tubing
$8.95
|
||
|
B & B Specialties Zenoah G 62 Spring Starter
$64.95
|
||
|
Tygon Tubing 10' x 1/8"ID
$29.00
|
||
|
Viton® Flexible Tubing
$4.75
|
||
|
J Tech Pitts Wrap Around Muffler
$109.95
|
||
|

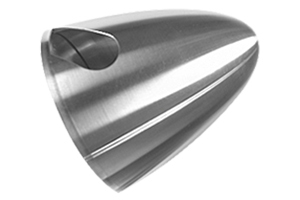

Tru- Turn P-61 Black Widow Spinner
$53.95
|
||
|
Fuel tank Filter
$3.75
|
| Product Name | Qty | ||
|---|---|---|---|
|
Dubro Foam Tire with Aluminum Hub
$36.00
|
||
|
Dubro Rubber Tire with Aluminum Hub
$36.00
|
||
|
Robart 8-Spoke Tuff Treads
$68.45
|
||
|
Robart 10-Spoke Tuff Treads
$68.45
|
||
|
Sierra Giant Scale 6" P-61 Wheel
$90.00
|
||
|
|
Sierra Giant Scale 4 1/2" P-61 Nose Wheel
$70.00
|
||
|
Sierra Giant Scale 1.5" Disk Brakes and Air Kit
$255.00
|
||
|
Robart 10-Spoke Tuff Treads Brake Ready
$68.45
|
||
|
Robart 8-Spoke Tuff Treads Brake Ready
$68.45
|
||
|
Robart 139SET Disc Brake Set
$286.95
|

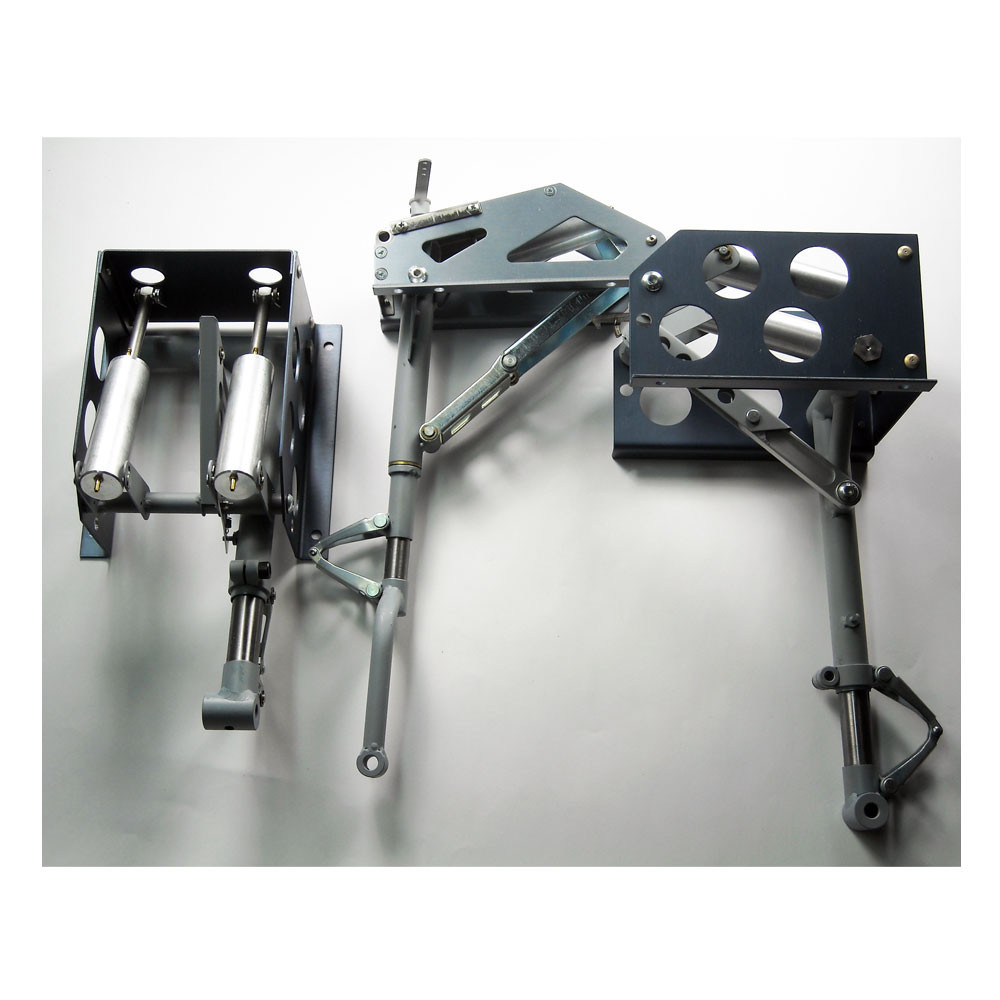

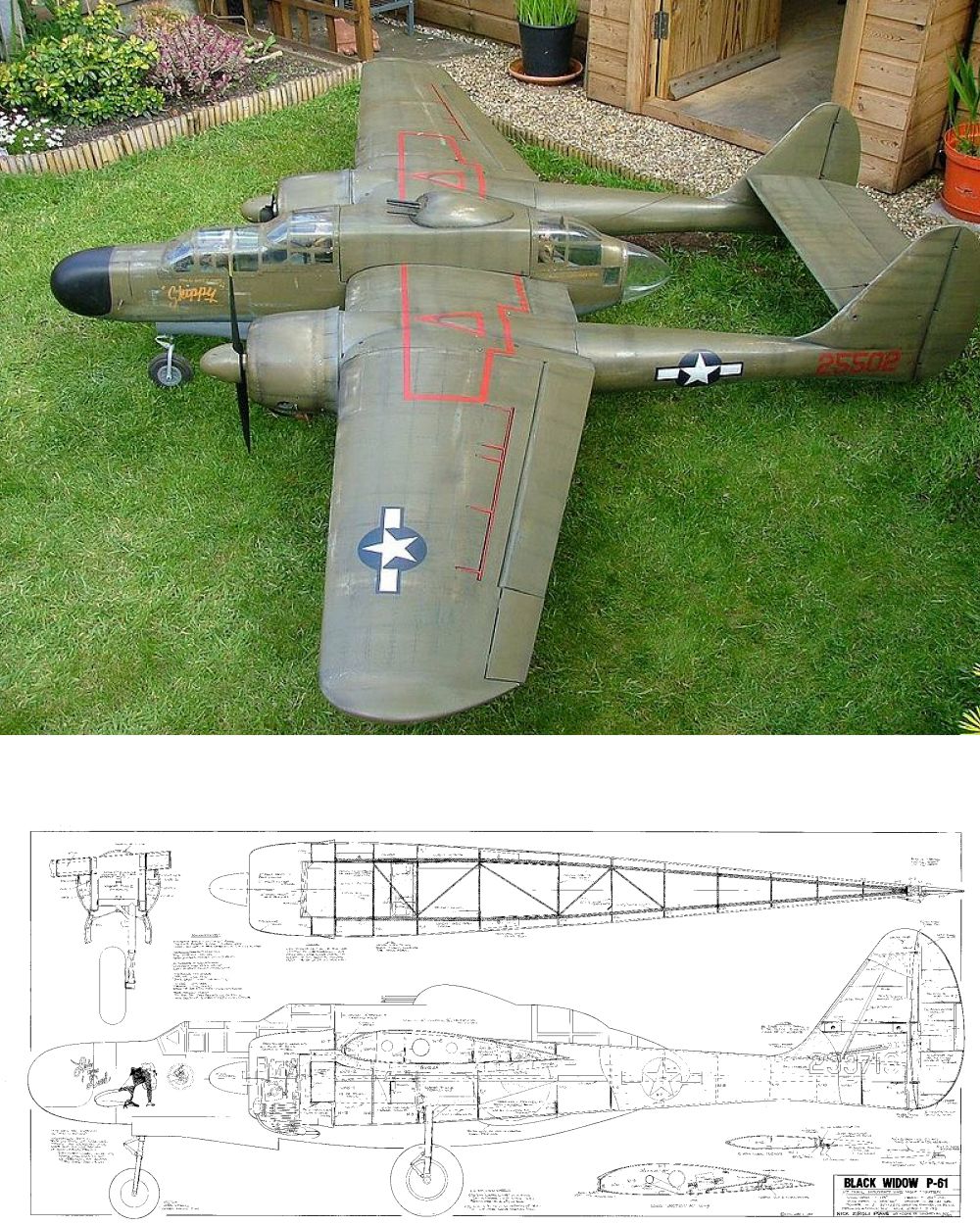

The giant scale P-61 Black Widow plan set is 1/7 scale and consists of five large sheets that clearly illustrate all structure as well as showing installation of flaps, spoilers and retracts. The P-61 Black Widow plan shows the installation of Robart retracts, servos and Zenoah G-38 engines and features three piece wing. The basic structures use conventional “modeling” tools and materials such as balsa and plywood, and the techniques are straightforward; easily accomplished by anyone with previous model building experience. There are many online building threads at www.rcuniverse.com forums and www.rcscalebuilder.com forums for Nick’s plans. Tech support is also available via email at www.ziroliplans.com or by phone 9:00 to 5:00 Mon - Fri EST 631-467-4765. The plan includes full-size templates for all the required parts allowing you to cut a complete “kit” before you start construction. If you would like to purchase a wood kit see KIT CUTTER'S on selection bar at the top of each page. The plans have a separate instruction guide and building notes on the plans. If you choose gear or an engine not shown on the plans you should have them on hand when you start construction to make any changes needed for mounting. Nick Ziroli Plans recommends covering the airframe with 1 oz fiberglass cloth and ZAP Z-poxy finishing resin and elevator and rudders with iron on cloth covering such as Solartex.. Nick Ziroli Plans has building and scale accessories available for the P-61 Black Widow.
| Plans Specifications |
|
|---|
